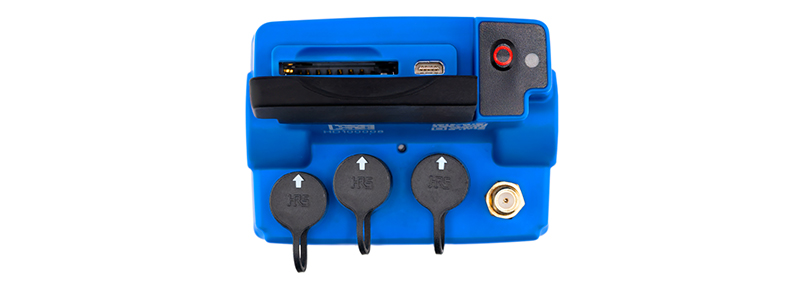

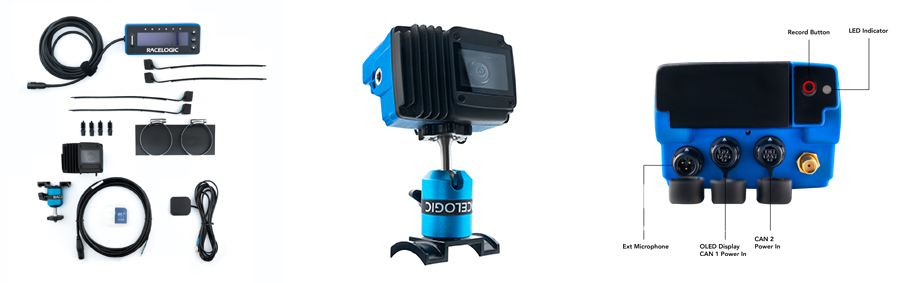

VBOX HD1 - The "1" you have been waiting for.
Race-proven video and data logging in one compact, plug-and-play camera. The most accessible VBOX Video product we have ever made.
KEY FEATURES
Built for MotorsportNot an action camera adapted for the track — a video data logger designed for it. Vehicle-powered, rated from −20°C to +60°C, reinforced body, replaceable toughened-glass lens, and a tether point to keep you safe and scrutineering-compliant.
Three Fields of ViewSwap between Narrow (66°), Normal (92°) and Wide (132°) modes – choose the framing that suits your car, from single-seater to full-cabin saloon, without moving the camera. |
Live Data OverlaySpeed, g-force, lap times and track map, embedded into your 1080p video and synced frame by frame – plus throttle, brake pressure, gear, temps, and any other ECU or dashboard data you want. Fully customisable scenes, or ready-made layouts if you just want to plug in and drive.
Circuit Tools 3 – Included FreeThe data to find time yourself. Compare laps, see exactly where you brake, turn in and get back on the power –rated by users as the most intuitive circuit analysis software available. No subscription. No paywall. |
Never Miss a SessionSpeed-triggered logging means HD1 starts recording automatically when you move and stops when you do. No missed sessions, no hours of meaningless footage. A configurable pre-buffer of up to 30 seconds ensures everything is captured, right from the race start.
Stream it LiveHDMI output sends real-time video, audio, and overlay graphics straight to a monitor, recorder, or streaming device. No other video and data logging system at this price point offers HDMI output, making it easy to get your footage beyond your own laptop. |
Set Up From Your PhoneFrame your shot from the driver's seat. The VBOX Video app connects over Wi-Fi for live camera preview, orientation fine-tuning and field of view setup.
Latest Generation RecordingH.265 (HEVC) encoding with dynamic bit rate delivers outstanding 1080p quality with efficient storage – around 8.5 GB per hour, tested with cards up to 512 GB. |
HDMI For Live Streaming
VBOX Video HDMI allows you to stream real-time video and audio to an HDMI compatible monitor, recorder or streaming device such as LiveU Solo.
VBOX Video HDMI can be used to give live coverage of motorsport events for TV or social media, provide race teams with the ability to give instant driver feedback, or act as a rearview camera.
The system comes with an HDMI port and locking pin to make sure our custom cable has a secure connection and will only run with the latest version of HD2 firmware (1.3.76 and higher) and setup software (1.4.259 and higher).
Real-Time Graphic Ovelay
RACELOGIC's range of in-car camera systems are fully synchronised and embed a real-time graphical overlay on your video, allowing you to instantly analyse your performance and pinpoint areas for improvement.
The overlays can display speed, track position, lap times, and other crucial metrics, which are invaluable for drivers seeking to improve performance or teams needing detailed post-race analytics.
ADDITIONAL FEATURES
25 Hz multi-constellation GNSS data logging
Compatible with Racelogic Micro and Mini Input Modules for analogue sensor channels
CAN output (Racelogic message set) for driving external displays and dashboards |
Internal microphone plus external mic/ intercom input
FAT32 and exFAT SD card support, 32 GB card supplied
Compatible with MoTeCAlign HD1 video with fully synchronised data that can be reviewed in Circuit Tools or MoTeC software. |
VBOX HD1 Camera Preview App
If you have an iPhone or Android Phone, you can use our free Preview App to see a live output of your cameras, allowing you to check the alignment of your cameras adn control other functions.
